EZWSM8K

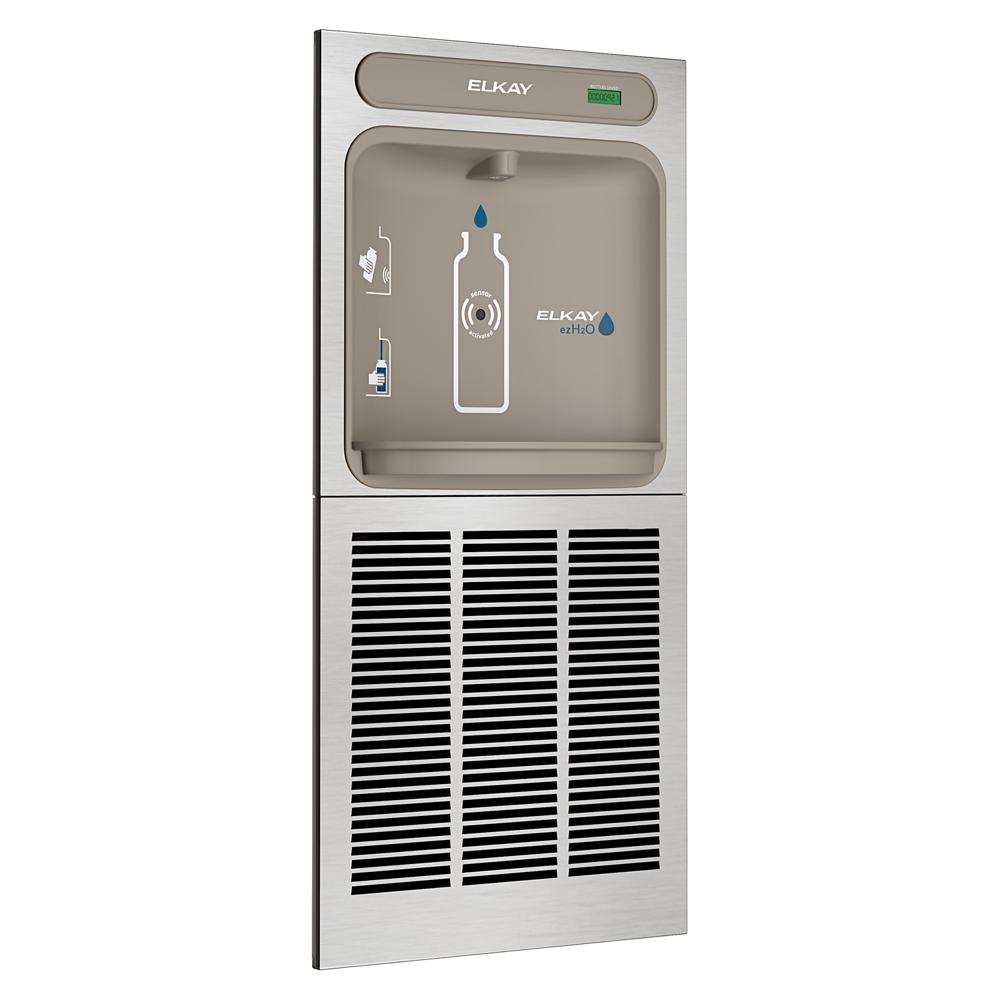

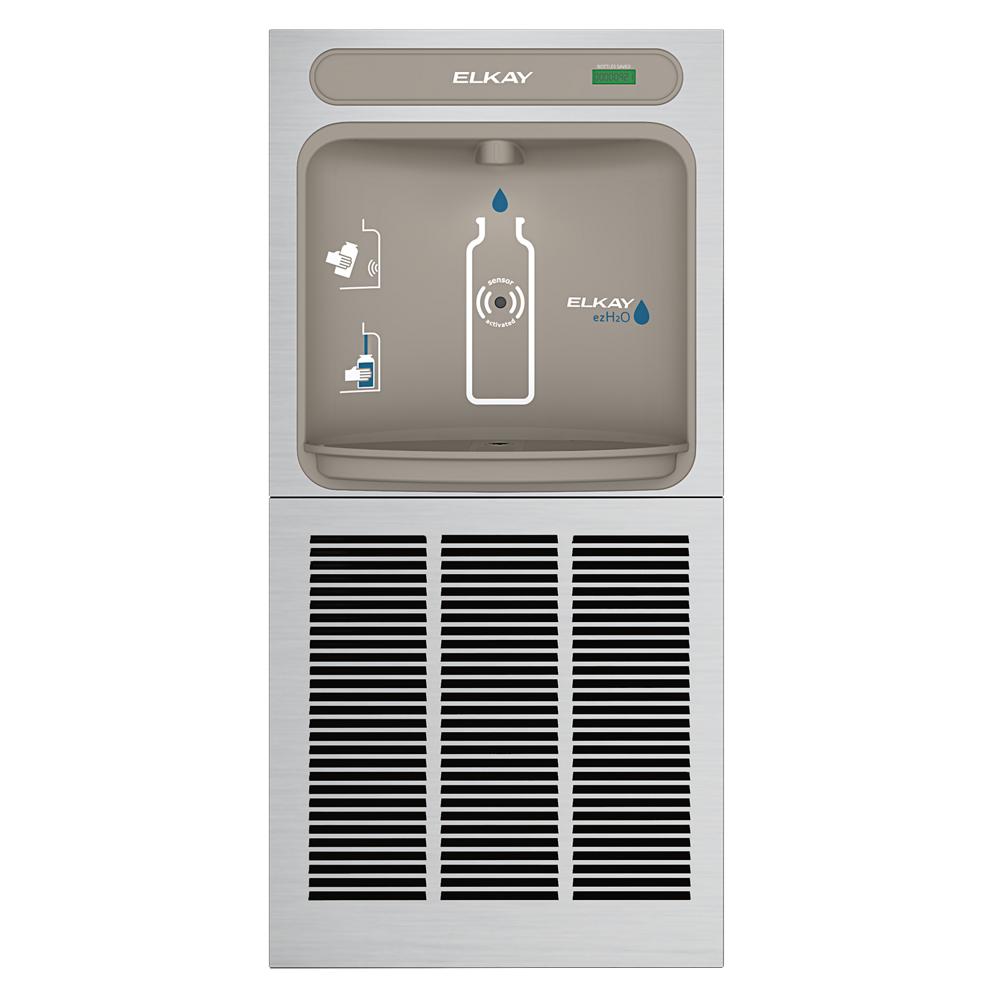

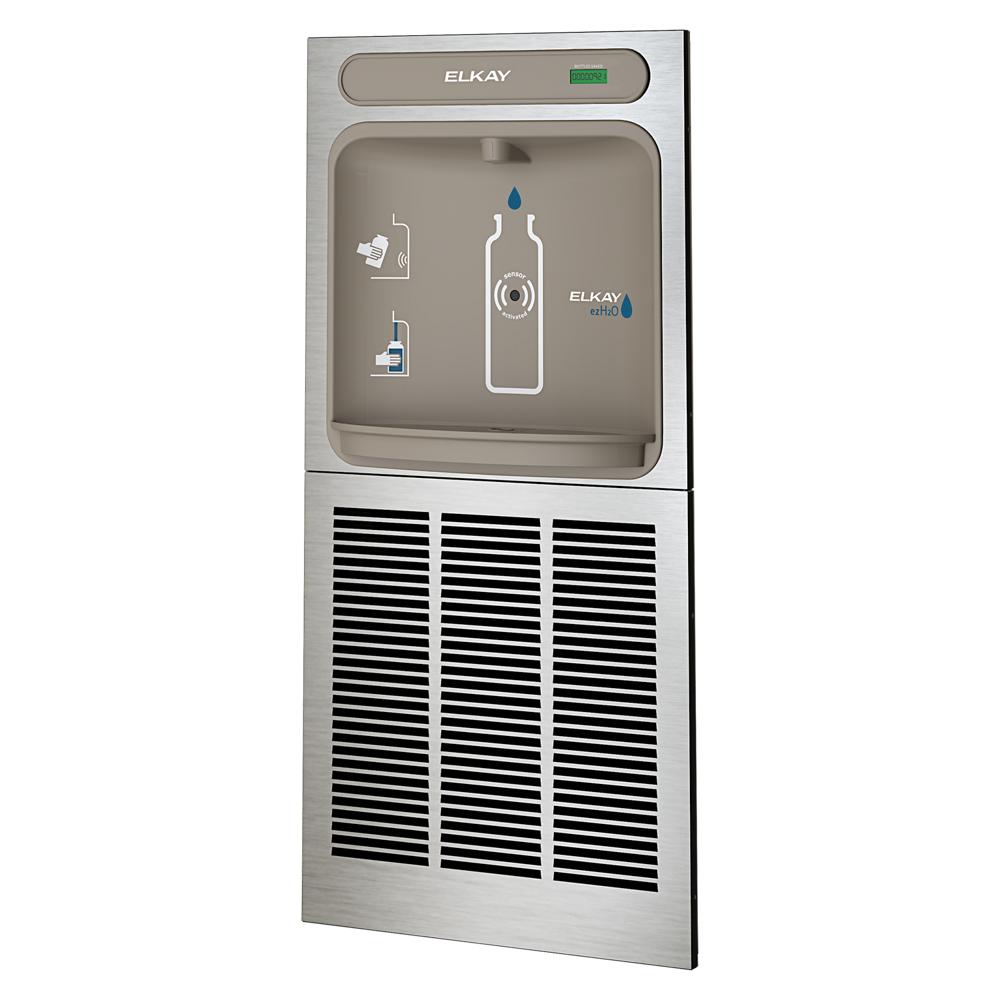

ezH2O® In-Wall Bottle Filling Station with Mounting Frame Non-Filtered Refrigerated Stainless

Product Support
ADA Yes
Installation Location Indoor
Power 115V/60Hz
Finish Stainless Steel
Features Antimicrobial
Green Ticker™
Hands Free
Laminar Flow
Real Drain
Number of Stations 1
Bubbler Style No Bubbler
Filtered No
Chilling Capacity 8.0 GPH
Mounting Option Wall Mount (Inwall Frame/Plate)
Included with Product Bottle Filler (EZWSM8C)
Mounting Frame (MFWS100)
Chiller (ECH8)
Code Compliance Drinking Solutions ADA & ICC A117.1
CAN/CSA C22.2 No. 120
GreenSpec
NSF 372 (lead free)
NSF 61
UL 399
Dimensions L: 19-3/4"
W: 3-1/2"
H: 40-13/16"
Shipping Dimensions L: 28-1/4"
W: 44-1/4"
H: 44-1/2"
Shipping Weight 77 LBS
Note Non-filtered model

The Elkay EZH2O® Bottle Filling Station delivers a clean quick water bottle fill and enhances sustainability by minimizing our dependency on disposable plastic bottles. Fully recessed in-wall design. Sanitary no-touch sensor activation with automatic 20-second shut-off timer.

  • Designed as a stand-alone unit or to be paired with Elkay® SwirlFlo or Soft Sides® architectural fountains
  • Hermetically sealed refrigeration system provides chilled water to satisfy thirst
  • Touchless, sensor-activated bottle filler designed for easy use
  • Fill rate is 1.1 GPM
  • Green Ticker™ informs user of number of 20 oz. plastic water bottles saved from waste
  • Key plastic components are manufactured with silver ion antimicrobial agent helping to provide clean, stain- and odor-free surfaces
  • Silver ion antimicrobial protection on key plastic components to inhibit the growth of mold and mildew
  • Real drain system eliminates standing water
  • Rated for indoor use
