MPW201

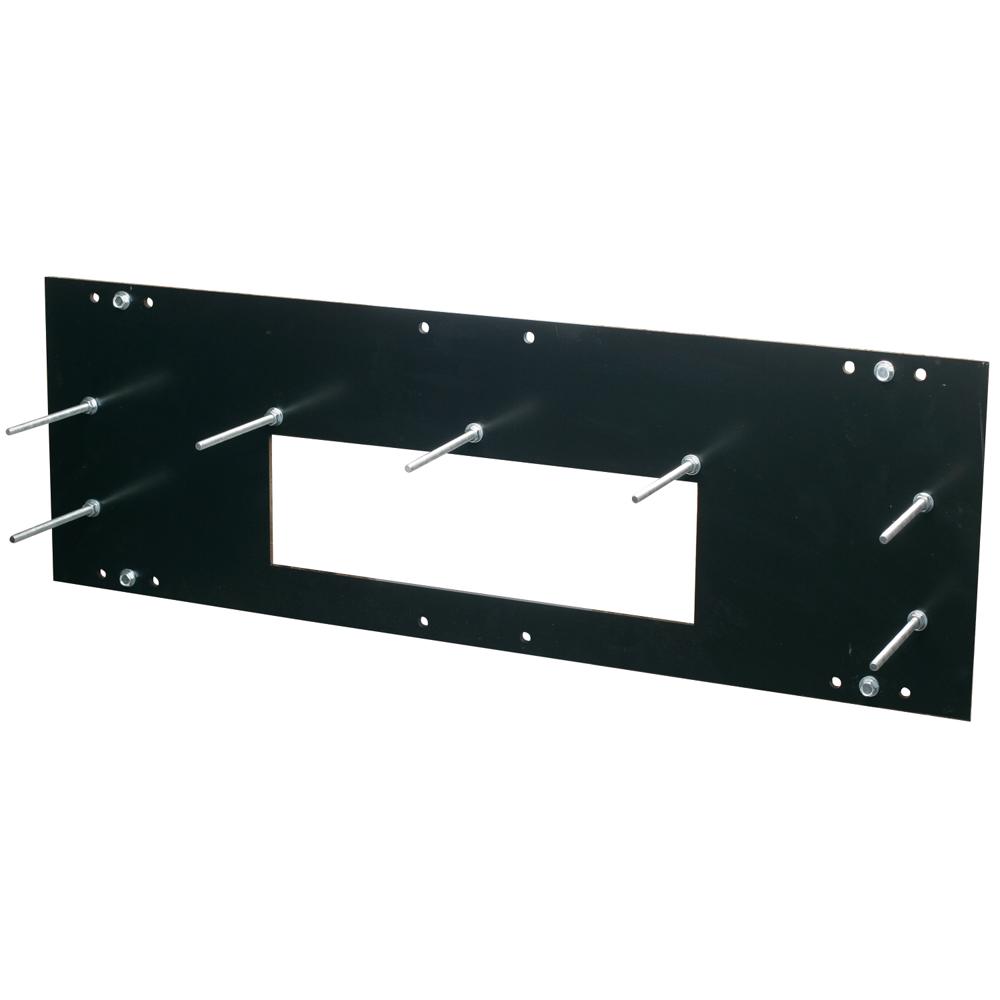

In-wall Mounting Plate for Bi-level On-wall White Granite Composite Fountain

Product Support
Application Type Hospitality
Accessory Type Mounting Options
Power No Electrical Required
Material Galvanized Steel
Finish Black
Included with Product Mounting Plate
Country Of Origin USA

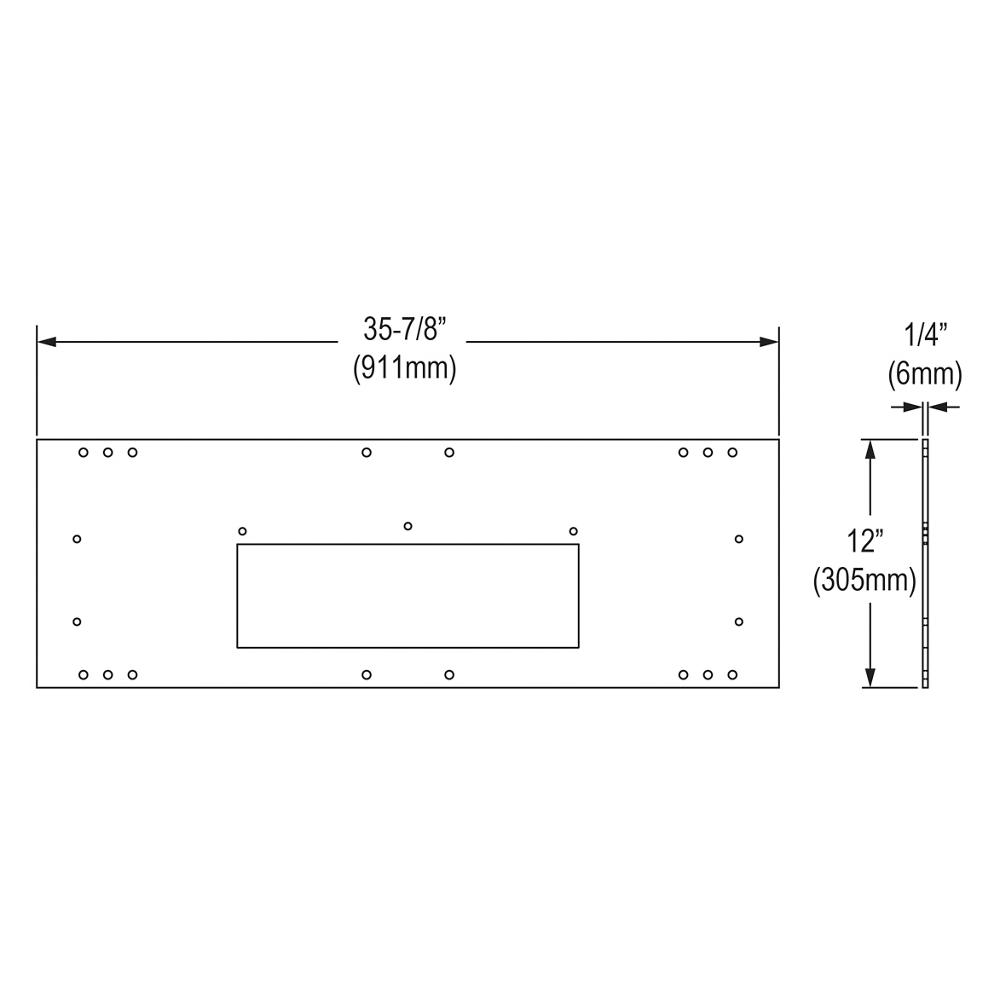

Dimensions L: 35-7/8"
W: 1/4"
H: 12"
Shipping Dimensions L: 40-1/2"
W: 16-1/2"
H: 1-3/4"
Shipping Weight 32.5 LBS
Note For use with two station white granite composite fountains.

We carry a range of mounting frames, plates and other installation support systems to properly position and enhance our refrigerated and non-refrigerated bottle filling stations, water coolers, drinking fountains and chillers of all configurations.

  • Universal design provides extra support when mounting on-wall two-station models.
  • Plate can be installed directly to studs or in conjunction with ML100 mounting legs (optional accessory sold separately).
  • Constructed of heavy-gauge steel supporting up to 500 lbs.
  • Secures directly to a variety of load-bearing surfaces.
  • Adjustable height setting allows for adult or child ADA installation.
  • Built in the USA.
